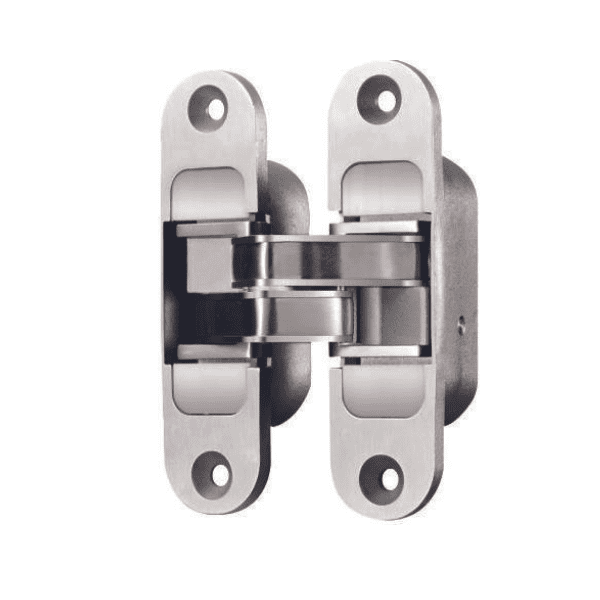

SH80

Suitable for wooden and Mental doors

Concealed installation

2D adjustable: vertical: ±1.5mm, depth:±1.5mm

Opening angle: 180°

Additional information

Load Capacity

80 KG/Pair
Material

Stainless steel 304
Door Thickness

Min. 40mm
Finish

SC/SN/CP/SG/PB/BL/AB/GB
ASK FOR A QUOTE

Product Details

Load capacity: 80KG/Pair

Door size:

Min. door thickness 40mm; Max. door width 900mm; Max. door height 2100mm



Supplied with

  • Hinges per package— 2pcs
  • SUS201 mounting screws —8pcs
  • Standard inner hexagon spanner,S3/S4—1pc



Installation

  • Cutter diameter:  Ø30mm
  • Door panel and frame cutting length: 112mm&70mm
  • Door panel and frame cutting depth: 6mm&38mm
  • Door panel and frame cutting width: 29.5mm
  • Screws of SUS201: Ø5mm
