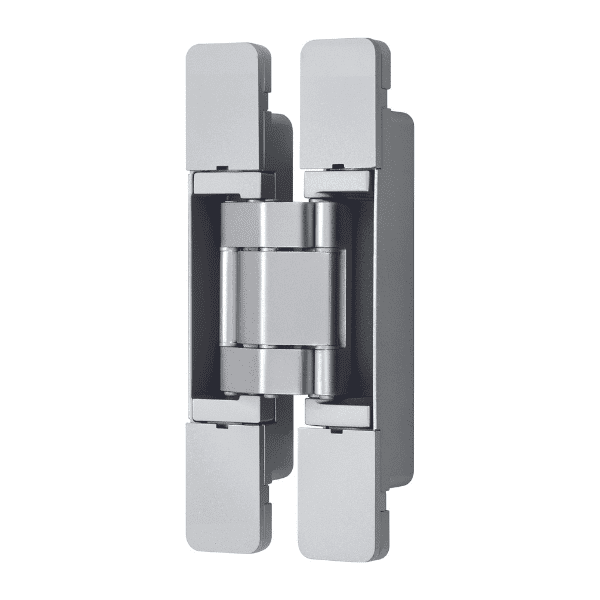

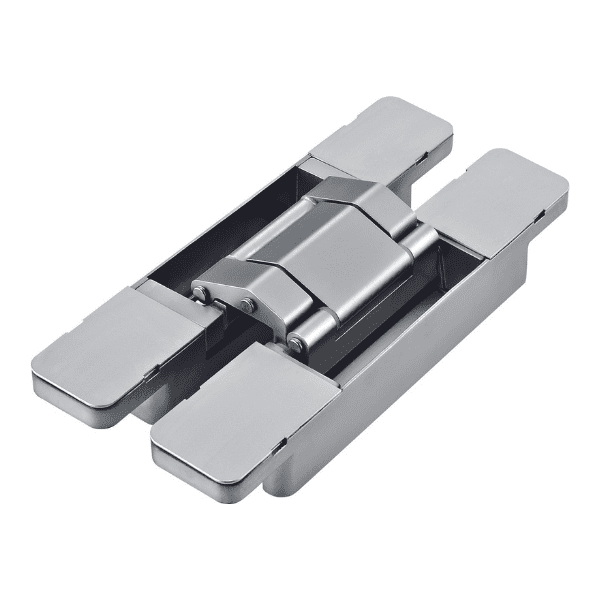

CH100S 3D

Suitable for wooden doors, for flush doors

Concealed installation

3D adjustable: vertical: ±3mm, horizontal:±2mm, depth:±1mm

Opening angle: 180°

Additional information

Load Capacity

100 KG/Pair


Zinc alloy + Aluminium



Product Details

Load capacity: 100KG/Pair

Door size:

thickness 38-55mm; Max. door width 900mm; Max. door height 2300mm


Supplied with

  • Hinges per package— 1pcs
  • SUS201 mounting screws inØ5x30mm—8pcs
  • Standard inner hexagon spanner,4mm—1pc
  • Covers—4pcs



  • Cutter diameter: Ø12mm
  • Door panel and frame cutting length: 190mm&140mm
  • Door panel cutting depth: 10mm&28mm
  • Door panel cutting width: 32mm
  • Door frame cutting depth: 10mm&28mm
  • Door frame cutting width: 34mm
  • Screws of SUS201: Ø5mm

For Twin leaves, the additional mounting accessory is to be ordered separately.
