SH200

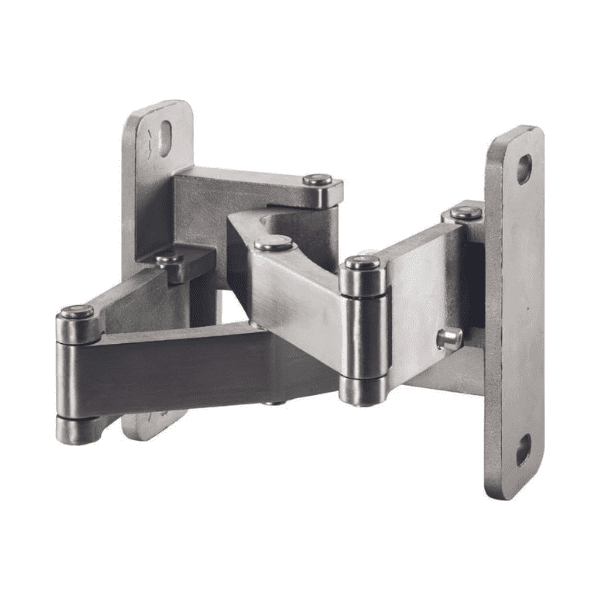

SH200 stone tube door concealed hinge

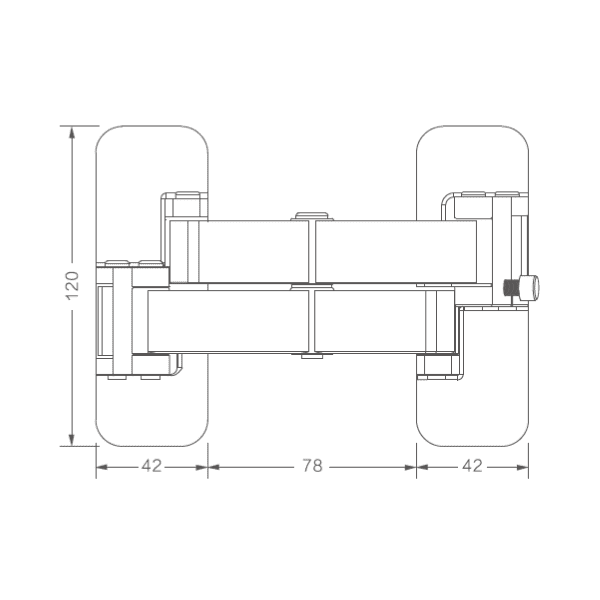

SH200 drawing

Suitable for stone tube doors

Concealed installation

2D adjustable: vertical: ±2mm, depth:±2mm

Opening angle: 180°

Additional information

Load Capacity	200 KG/Pair
Material	Stainless steel 304
Door Thickness	Max. 35mm
Finish	SSS

Product Details

Load capacity: 200KG/Pair

Door size:

Max. door thickness: 35mm;

Min. square steel size: 40x40mm

Supplied with

Hinges per package— 1pc
SUS201 mounting screws —4pcs
