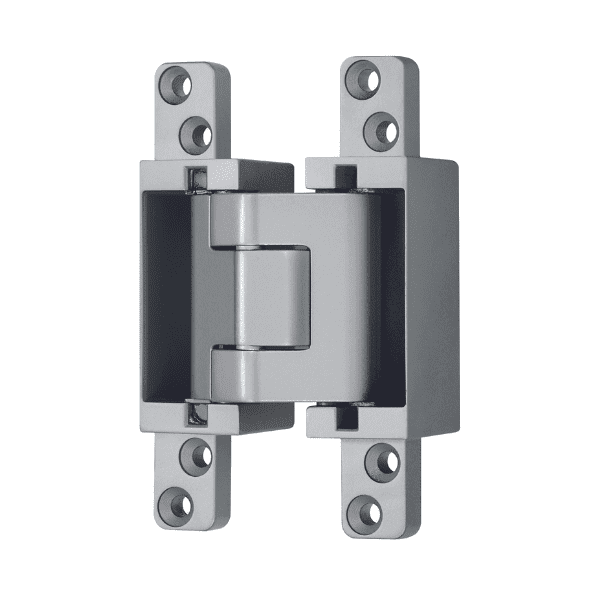

Suitable for ALUMINIUM doors

Concealed installation

Easy to install and adjust

Opening angle: 180°

Additional information

Load Capacity

80 KG/Pair


Zinc alloy + Aluminium

Door Thickness

Min. 38mm



Product Details

Load capacity: 80KG/Pair

Door size:

thickness Min. 38mm;  Max. door width 900mm; Max. door height 2100mm


Supplied with

  • Hinges per package— 2pcs
  • SUS201 mounting screws inM5x30mm—16pcs



  • Cutter diameter: Ø20mm
  • Door panel and frame cutting length: 120mm&66mm
  • Door panel cutting depth: 18mm&34.5mm
  • Door frame cutting depth: 18.5mm&31mm
  • Screws of SUS201: Ø5mm

For Twin leaves, the additional mounting accessory is to be ordered separately.
