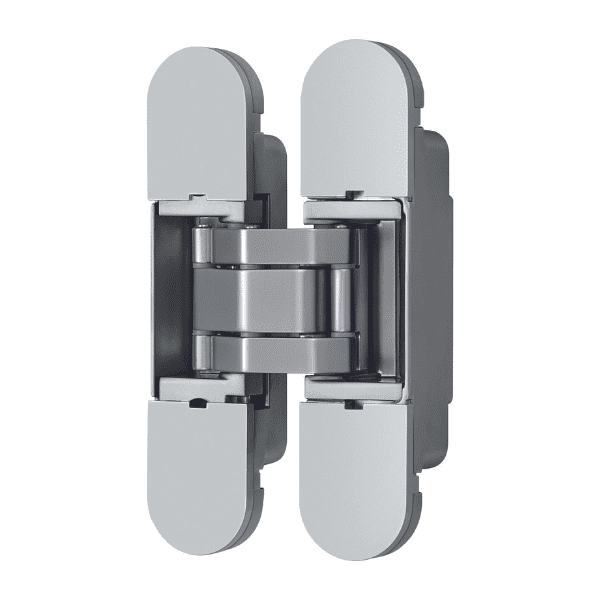

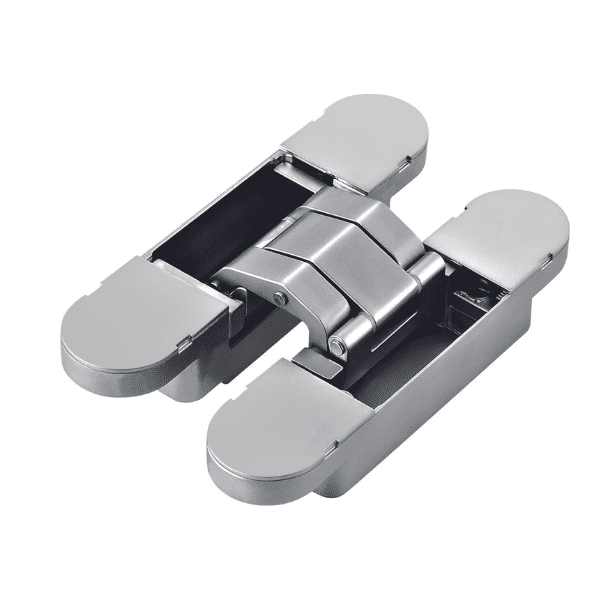

CH60A 3D

CH60A

CH60A 3D

Suitable for wooden doors, for flush doors

Concealed installation

3D adjustable: vertical: ±2mm, horizontal:±3.5mm, depth:±1mm

Opening angle: 180°

Additional information

Load Capacity	60KG/Pair
Material	Zinc alloy
Door Thickness	38-55mm
Finish	SC/SN/CP/SG/PB/BL/AB/GB

Product Details

Load capacity: 60KG/Pair

Door size:

thickness 38-55mm; Max. door width 900mm; Max. door height 2100mm

Supplied with

Hinges per package— 2pcs
SUS201 mounting screws inØ5x30mm—8pcs
Standard inner hexagon spanner,4mm—1pc
Covers—8pcs

Installation

Cutter diameter: Ø30mm& Ø12mm

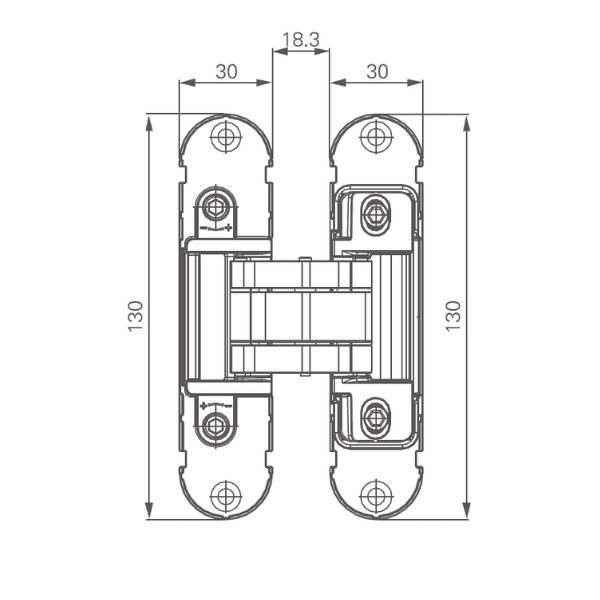

Door panel and frame cutting length: 130.5mm&86.5mm
Door panel cutting depth: 9.5mm&29mm
Door panel cutting width: 30.5mm
Door frame cutting depth: 9.5mm&22.5mm
Door frame cutting width: 30.5mm
Screws of SUS201: Ø5mm

For Twin leaves, the additional mounting accessory is to be ordered separately.
