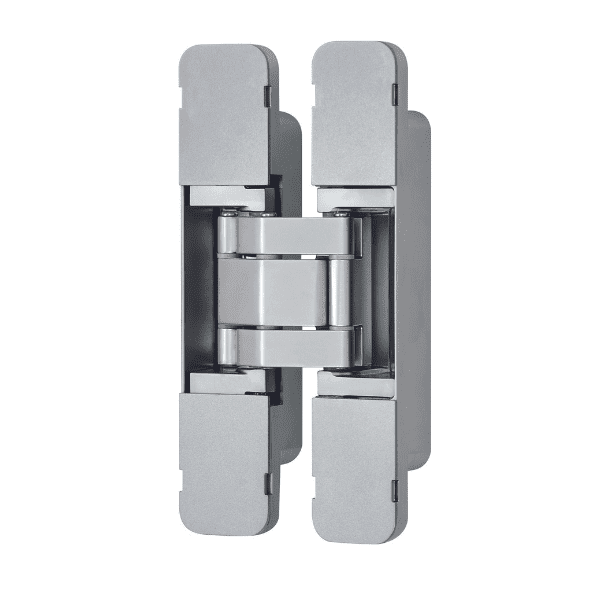

CH40S 3D

Suitable for wooden doors, for flush doors

Concealed installation

3D adjustable: vertical: ±2mm, horizontal:-2mm/+3mm, depth:±1mm

Opening angle: 180°

Additional information

Load Capacity

40 KG/Pair

Material

Zinc alloy

Door Thickness

29-45mm

Finish

SC/SN/CP/SG/PB/BL/AB/GB

Product Details

Load capacity: 40KG/Pair

Door size:

thickness 29-45mm; Max. door width 850mm; Max. door height 2100mm



Supplied with

  • Hinges per package— 2pcs
  • SUS201 mounting screws inØ5x30mm—8pcs
  • Standard inner hexagon spanner,4mm—1pc
  • Covers—8pcs



Installation

  • Cutter diameter: Ø12mm
  • Door panel and frame cutting length: 120.5mm&88.5mm
  • Door panel cutting depth: 7mm&20.5mm
  • Door panel cutting width: 23.5mm
  • Door frame cutting depth: 7mm&20.5mm
  • Door frame cutting width: 25.5mm
  • Screws of SUS201: Ø5mm

For Twin leaves, the additional mounting accessory is to be ordered separately.
