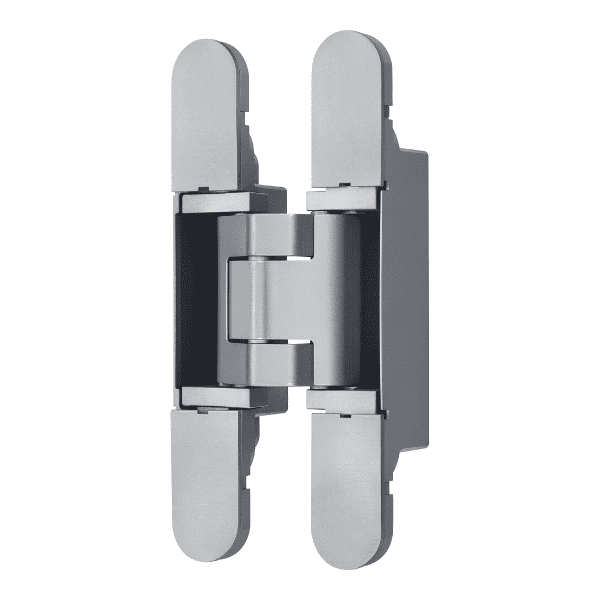

CH160A 3D

Suitable for wooden doors, for flush doors

Concealed installation

3D adjustable: vertical: ±3mm, horizontal:-2mm/+4mm, depth:±1mm

Opening angle: 180°

Additional information

Load Capacity

160 KG/Pair

Material

Zinc alloy + Aluminium

Finish

SC/SN/CP/SG/PB/BL/AB/GB

Product Details

Load capacity: 160KG/Pair

Door size:

thickness 50-70mm; Max. door width 900mm; Max. door height 2300mm



Supplied with

  • Hinges per package— 1pcs
  • SUS201 mounting screws inØ5x30mm—8pcs
  • Standard inner hexagon spanner,4mm—1pc
  • Standard inner hexagon spanner,3mm—1pc
  • Covers—4pcs



Installation

  • Cutter diameter: Ø32mm
  • Door panel cutting length: 240mm&191mm,134mm&20mm
  • Door frame cutting length: 240mm&194mm,134mm&20mm
  • Door panel cutting depth: 11.5mm&44mm
  • Door panel cutting width: 32mm
  • Door frame cutting depth: 11.5mm&42mm
  • Door frame cutting width: 32mm
  • Screws of SUS201: Ø5mm

For Twin leaves, the additional mounting accessory is to be ordered separately.
