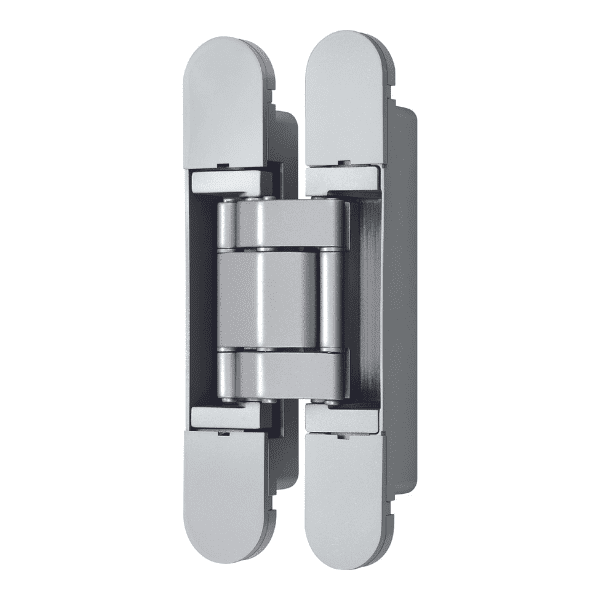

CH100 3D

CH100

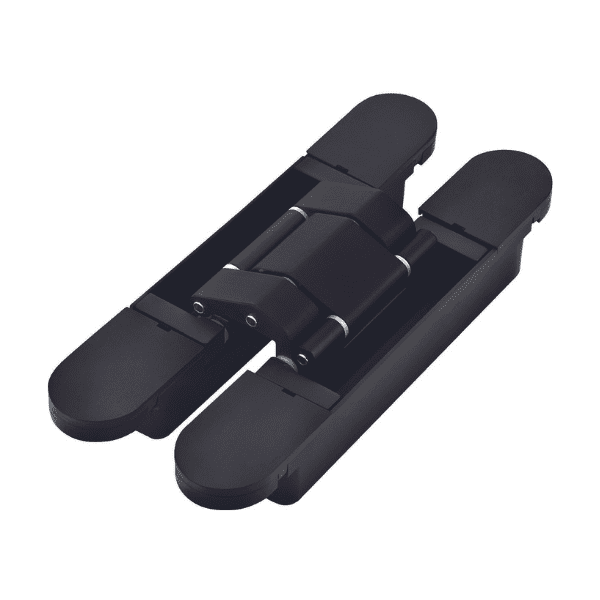

CH100-BLK

Suitable for wooden doors, for flush doors

Concealed installation

3D adjustable: vertical: ±3mm, horizontal:±2mm, depth:±1mm

Opening angle: 180°

Additional information

Load Capacity	100 KG/Pair
Material	Zinc alloy + Aluminium
Finish	SC/SN/CP/SG/PB/BL/AB/GB

Product Details

Load capacity: 100KG/Pair

Door size:

thickness 38-55mm; Max. door width 900mm; Max. door height 2300mm

Supplied with

Hinges per package— 1pcs
SUS201 mounting screws inØ5x30mm—8pcs
Standard inner hexagon spanner,4mm—1pc
Covers—4pcs

Installation

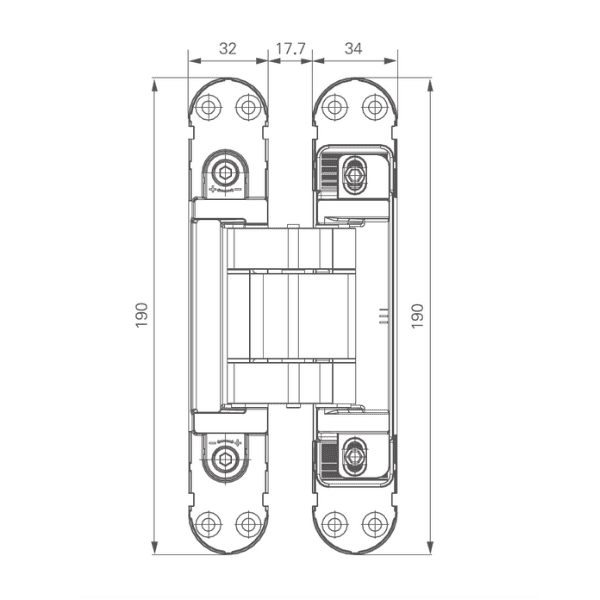

Cutter diameter: Ø34mm&Ø32mm&Ø12mm
Door panel and frame cutting length: 190mm&140mm
Door panel cutting depth: 10mm&28mm
Door panel cutting width: 32mm
Door frame cutting depth: 10mm&28mm
Door frame cutting width: 34mm
Screws of SUS201: Ø5mm

For Twin leaves, the additional mounting accessory is to be ordered separately.
